imgi_16_EK1-Pro

45km/h

Top Speed

97 km

Range

3.0 KW

Peak Power

Customized Decals

Color Customization

Customization of vehicle brand logo

Front Rack

Left and right backpack racks

Rear tailstock

* Complete vehicle renovation design, intelligent system linkage deployment, customized complete solution (with minimum order quantity)

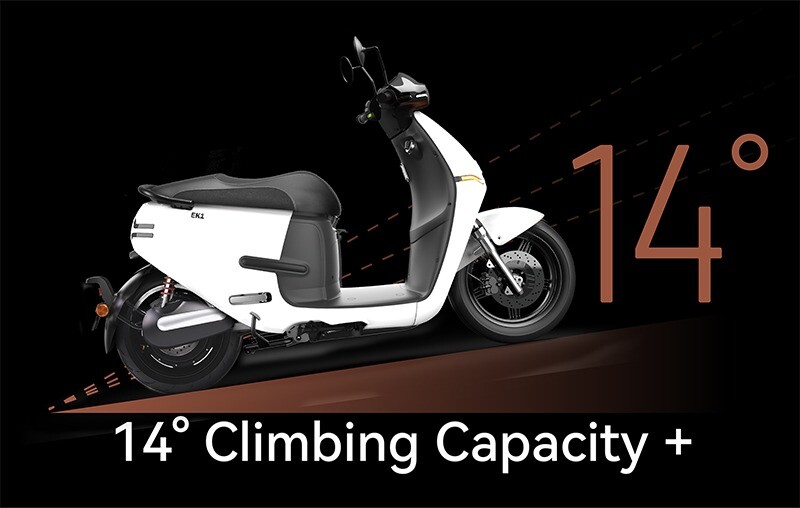

14° CLIMBING CAPACITY +

New 3000W Wheel Hub Motor:

Boosts climbing angle from 12° to 14°, making it adaptable to a wider range of terrains.

imgi_17_14
imgi_17_battery7236

LONG RANGE

Dual 36Ah batteries provide a range of up to 166km, extending your journey.

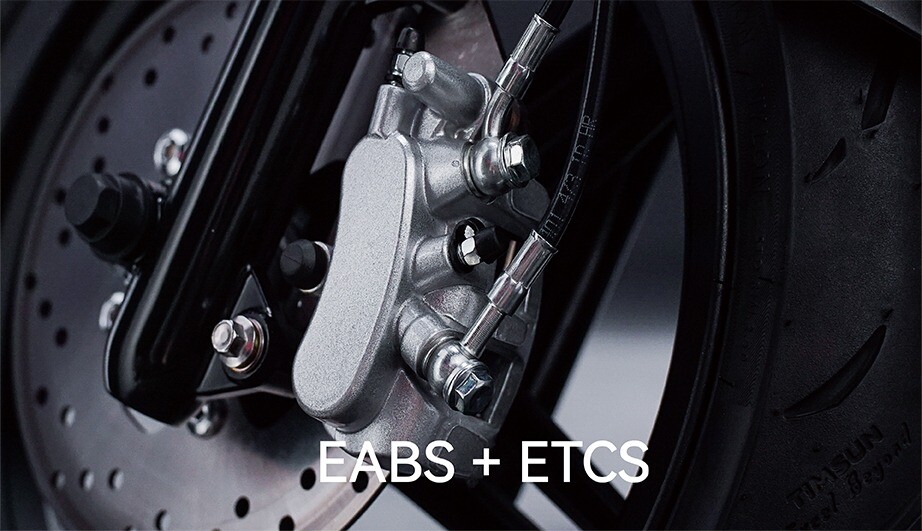

EABS + ETCS

Advanced electronically assisted braking and control for safer, more efficient rides.

imgi_19_EABS

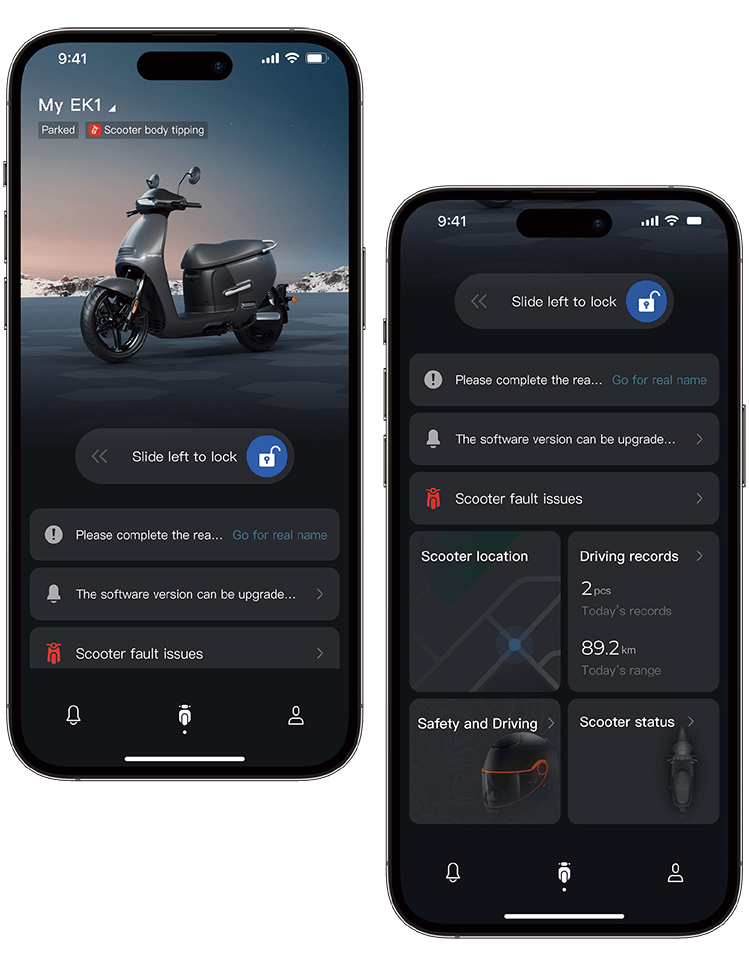

INTELLIGENT CONTROL

HORWIN APP fully online

Battery level.

Vehicle positioning.

Riding record.

Anti-theft alarm.

Remote control start/stop

GET IT ON

imgi_20_weibiaoti

Support APP to view vehicle information remotely.

imgi_21_phone

Product Specification

PERFORMANCE
Top Speed 45km/h
Range 90km(with 40 kph)
DIMENSION
L*W*H 1920mm*720mm*1150mm
Saddle Height 780mm
Ground Clearance 132mm
Wheelbase 1290mm
Weight(G.W) ≤96.8kg(without battery)
POWERTRAIN
Motor Hub Motor
Controller FOC
Max Power 3.0kW
Continue Rated Power 2.0kW
Battery 72V,36Ah(optional with second battery)
Charging Time(8A) ≈4.5h
Ride Mode 1/2/3/R
CHASSIS
Brake System Disc Brake
Wheels Tire 100/80 R14
110/70 R13
Rim Aluminium Alloy
SMART&FEATURES
Safety System GPS+Transaction Alarm
Touch-start Display ●
All-around LED Lights ●
