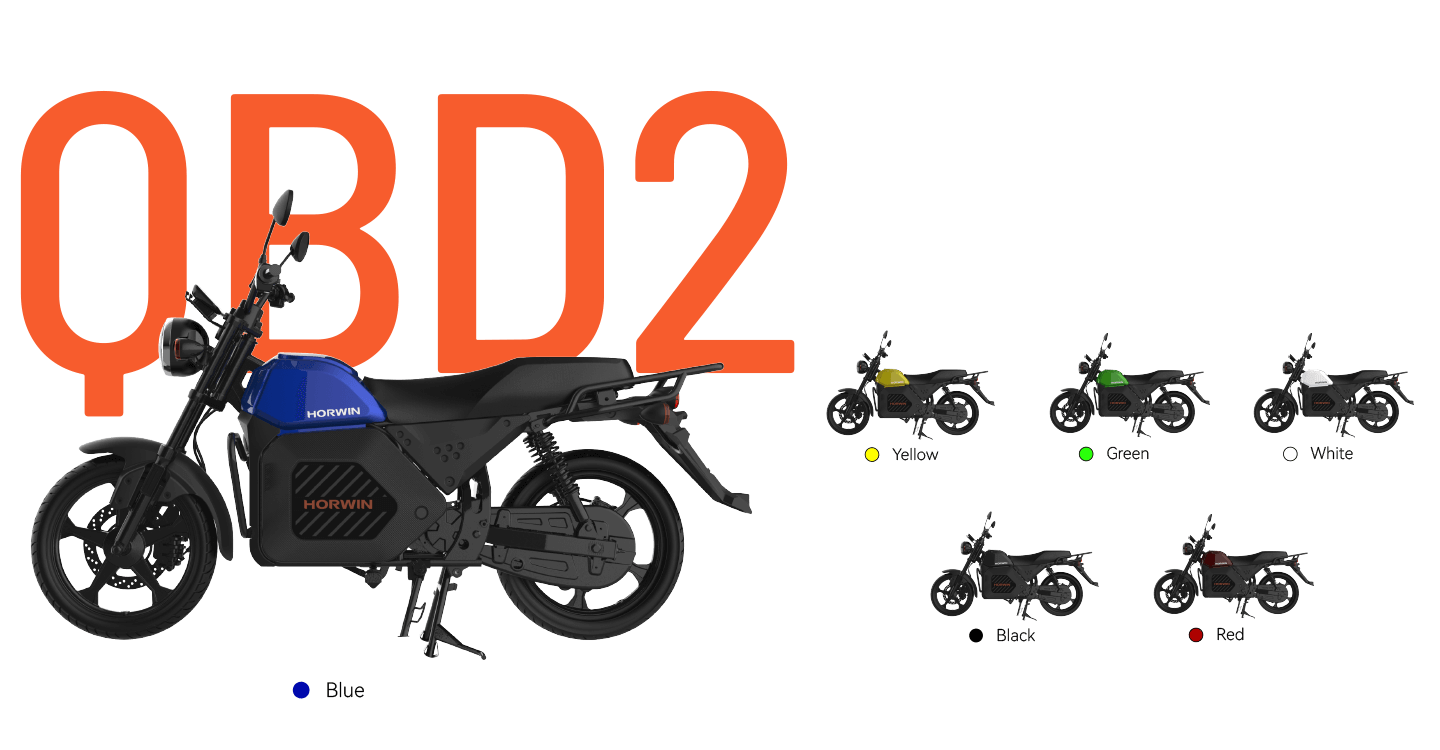

imgi_16_QBD2

85km/h

Top Speed

45*2 AH

Battery

7.0 KW

Peak Power

Customized Decals

Color Customization

Customization of vehicle brand logo

Front Rack

Left and right backpack racks

Rear tailstock

* Complete vehicle renovation design, intelligent system linkage deployment, customized complete solution (with minimum order quantity)

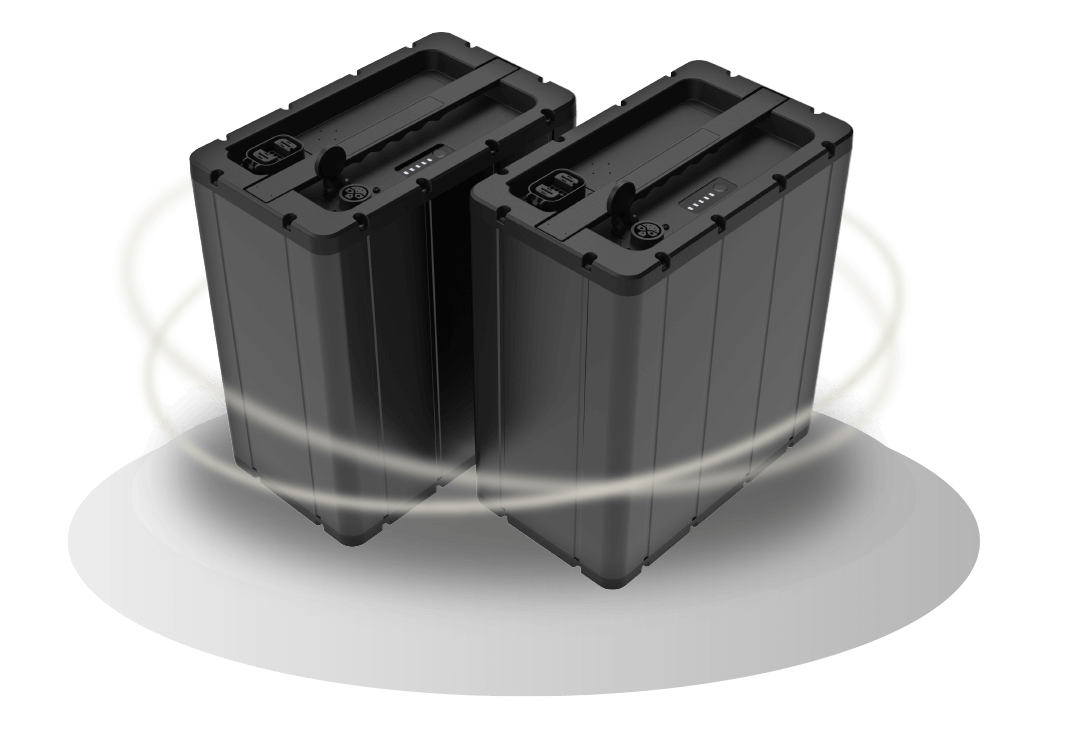

imgi_17_Battery

BATTERY

For QBD2, We have designed a flexible battery solution with 72V 45AH dual removable lithium iron phosphate batteries, with automotive grade long lasting lithium cells for long life. The range is up to 130km at speed of 60km/h.

EXCLUSIVITY

Industry's first mid-motor 2B straddle model, customization available.

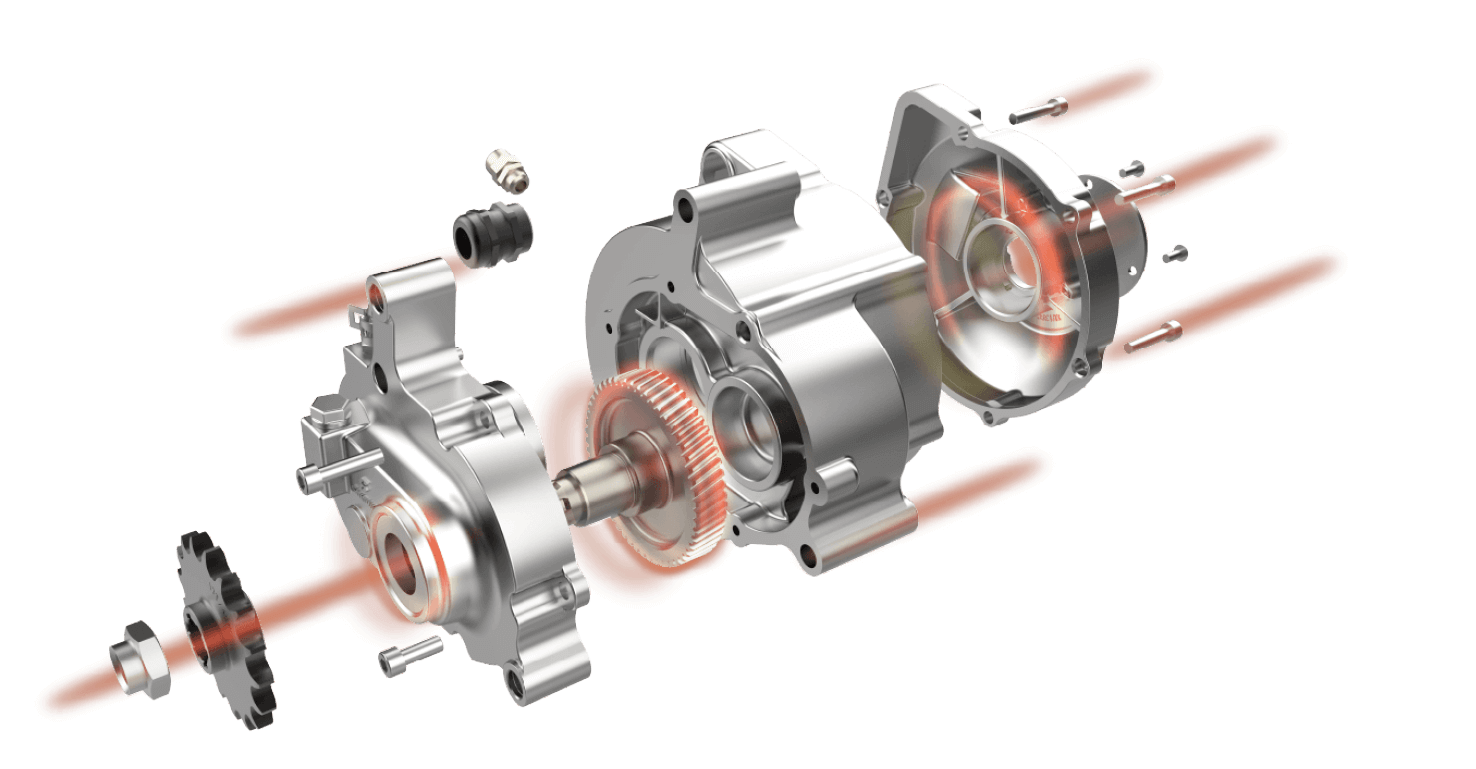

imgi_18_Power

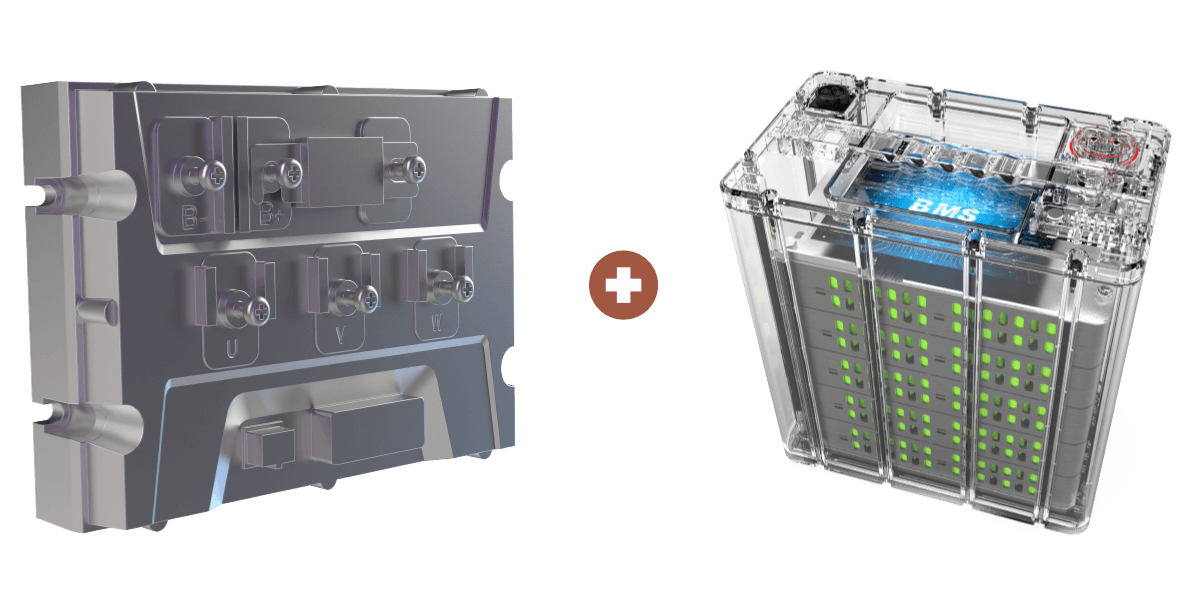

imgi_19_Highly

HIGHLY EFFECTIVE

Efficient thermal management system,Energy efficiency is 39% higher than in the industry.

MORE INTELLIGENT MORE POWERFULL MORE DURABILITY

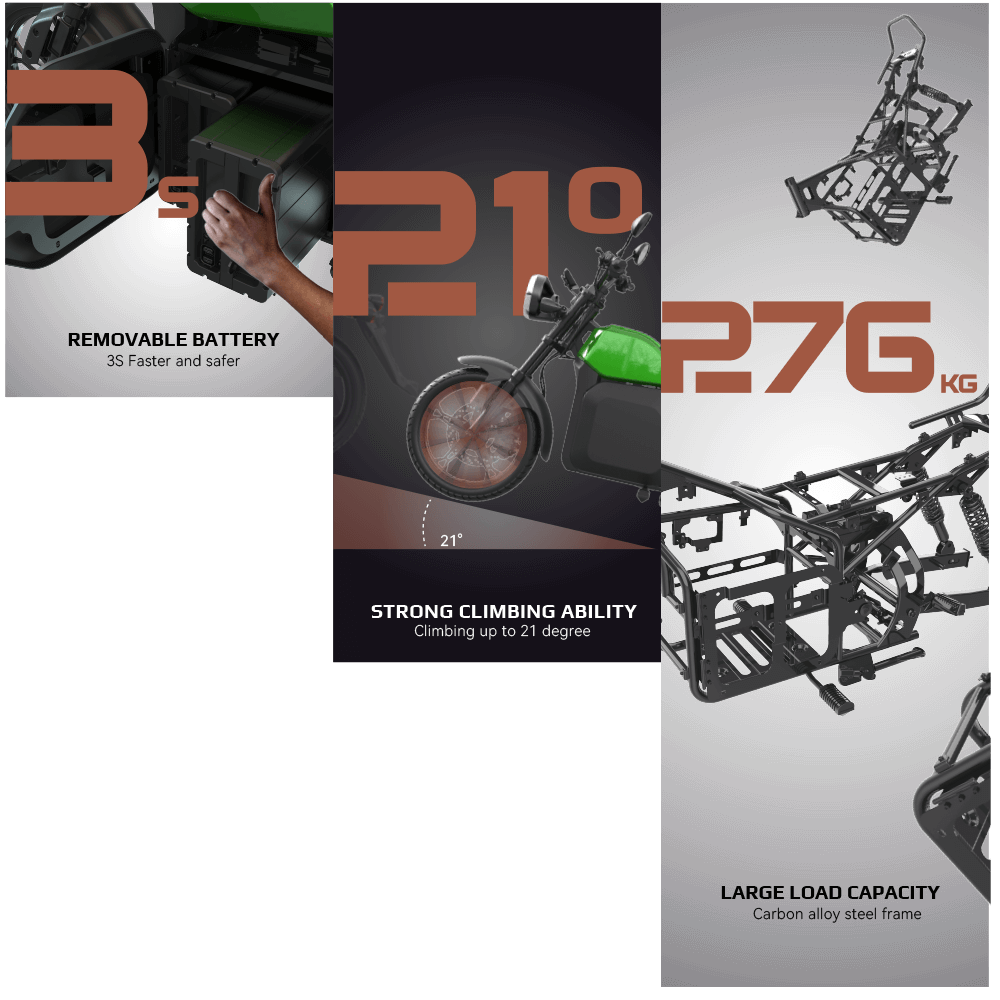

imgi_20_3dian

FEATURES

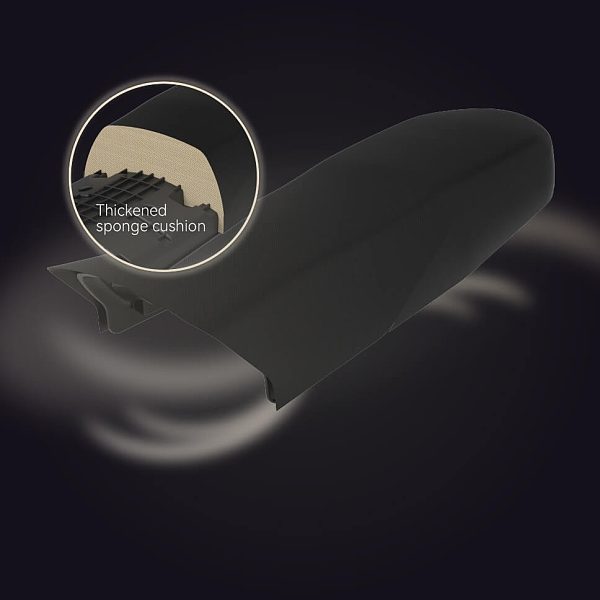

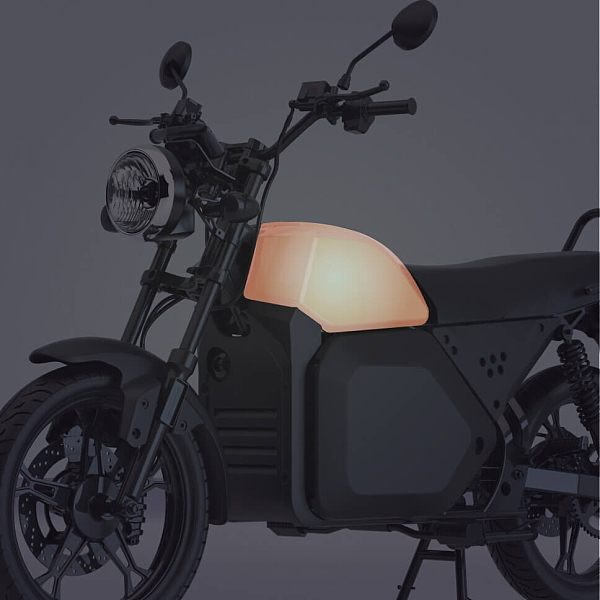

  • Large and soft seat for long-distance ride.
    HIGH COMFORT
    Large and soft seat for long-distance ride.
  • Holds your valuables and riding gear.
    6L ANTI-THEFT STORAGE SPACE
    Holds your valuables and riding gear.

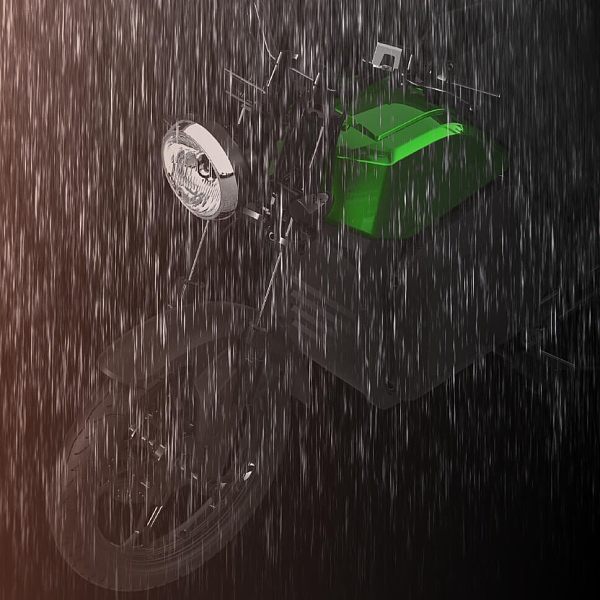

  • Battery and motor controller are equipped with waterproof rating of IP67,while the vehicle equipped with waterproof rating of IP54.
    WATEPROOF
    Battery and motor controller are equipped with waterproof rating of IP67,while the vehicle equipped with waterproof rating of IP54.

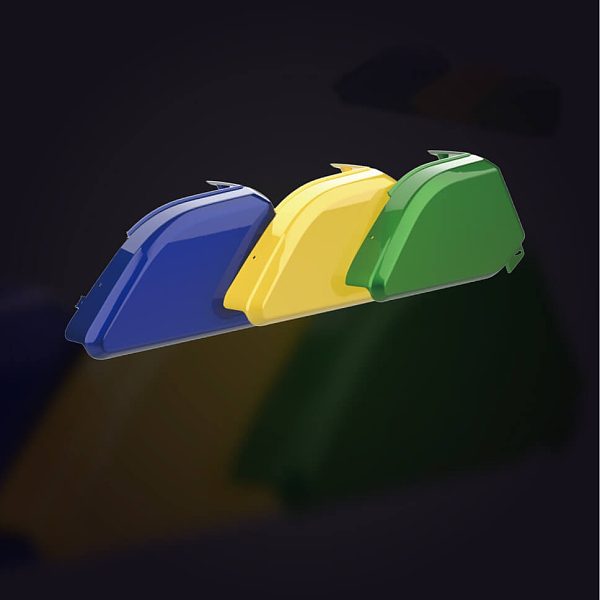

  • Automotive-grade three-layer paint baking process.
    WEAR RESISTANT VEHICLE PAINT
    Automotive-grade three-layer paint baking process.

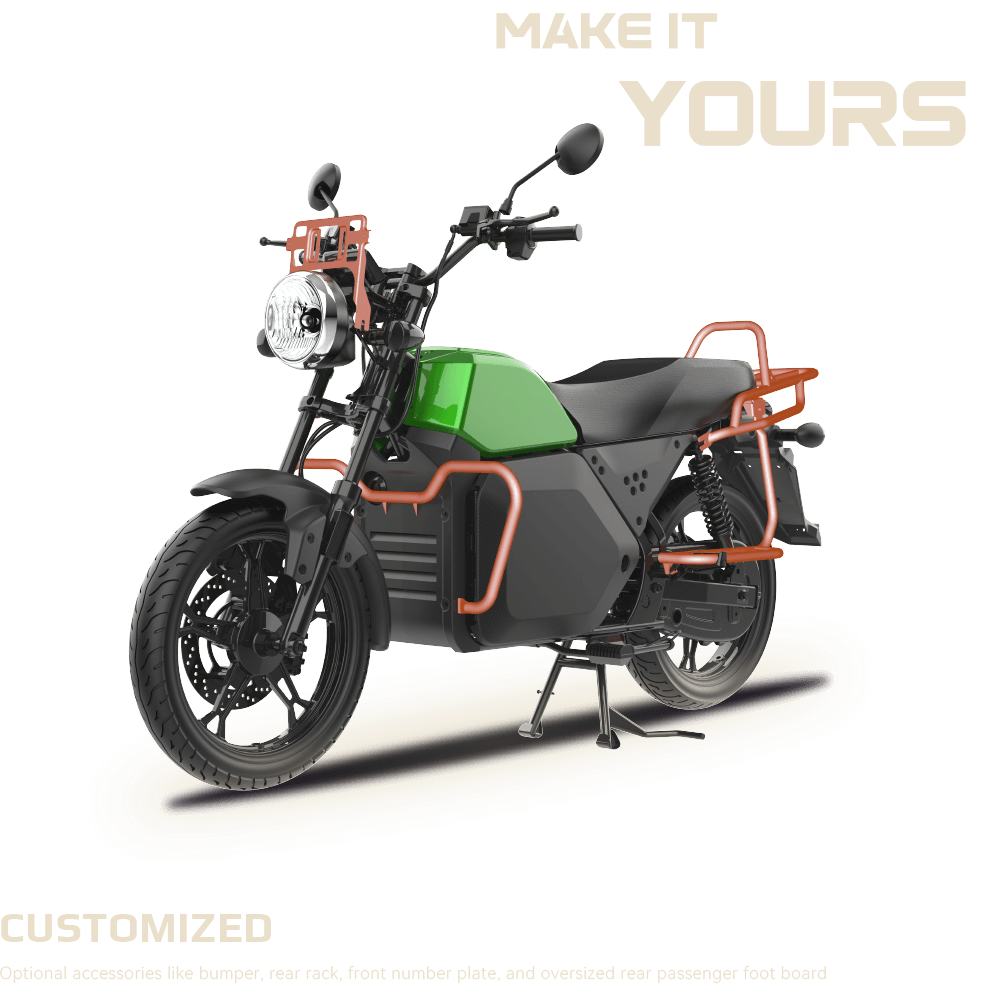

imgi_25_Customize

CUSTOMIZED

Optional accessories like bumper, rear rack, front number plate, and oversized rear passenger foot board.

Product Advantages

  • The e-vehicle moves almost noiselesslyEven at top speed,thetyre noise is the only thing you hear
    ALMOST NOISELESS
    The e-vehicle moves almost noiselesslyEven at top speed,thetyre noise is the only thing you hear
  • No exhaust fumes means noemissions. Smelly clothes are alsoa thing of the past.
    NO SMELL
    No exhaust fumes means noemissions. Smelly clothes are alsoa thing of the past.
  • The engine is maintenance-free.Only the tyres and some partsof thebrake system need to be replacedfrom time to time.
    LOW MAINTENANCE COSTS
    The engine is maintenance-free.Only the tyres and some partsof thebrake system need to be replacedfrom time to time.
  • No exhaust fumes means noemissions. Smelly clothes are alsoa thing of the past.
    LOW RUNNING COSTS
    No exhaust fumes means noemissions. Smelly clothes are alsoa thing of the past.
  • Normally, insurance costs are muchlower than forpetrol-driven vehicles(depending on the country)
    LOW INSURANCE COSTS
    Normally, insurance costs are muchlower than forpetrol-driven vehicles(depending on the country)
  • The e-vehicle drive is probably themost sustainable andenvironmen-tally friendly way to get from A to B.
    ENVIRONMENTALLY FRIENDLY
    The e-vehicle drive is probably themost sustainable andenvironmen-tally friendly way to get from A to B.

SCENARIO

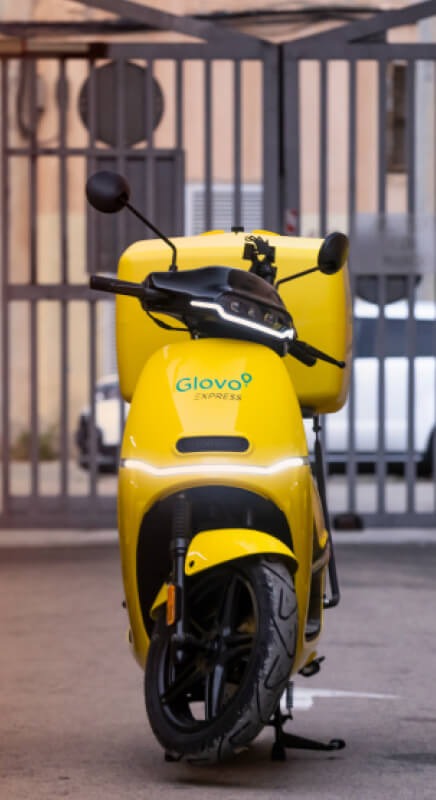

  • Delivery Scooter
  • Motorcycle Taxi
  • Swapping Cabinet
  • Leasing Vehicle

Product Specification

SPECIFICATIONS
Color Green 、Blue 、Yellow 、Red 、White 、Black
Size L:2090mm          W:770mm    H:1090mm       Seat  Hight:760mm
Motor Type Mid-motor
Controller FOC
Battery NCM Battery 72V 45AH*2
MEASUREMENTS
Front hub MT  1.85x16  Wheelbase 1350mm
Rear  hub MT  2.15x16 Minimum Ground Clearance 145 mm
Front tire size 80/90-16 Max.permissible Total Weight 282 KG
Rear tire size 100/80-16 Rim Aluminium Alloy
ELECTRONIC PARTS SPECIFICATION
Rated Power 4.5kW Braking System CBS
Max Power 7.0kW Charging Time(10A) About 5.5h*2(2 batteries)
Top Speed 85 km/h Maximum Torque 320N·m
Max.range(EEC test) 130km（at speed of 60km/h）(4.5AH*2)
FEATURES
Removable Battery Yes USB 5V/1A
Lights LED(front,rear,flashing) Optional Front Bumper/Rear Rack
Screen LED /Foot  Rest
