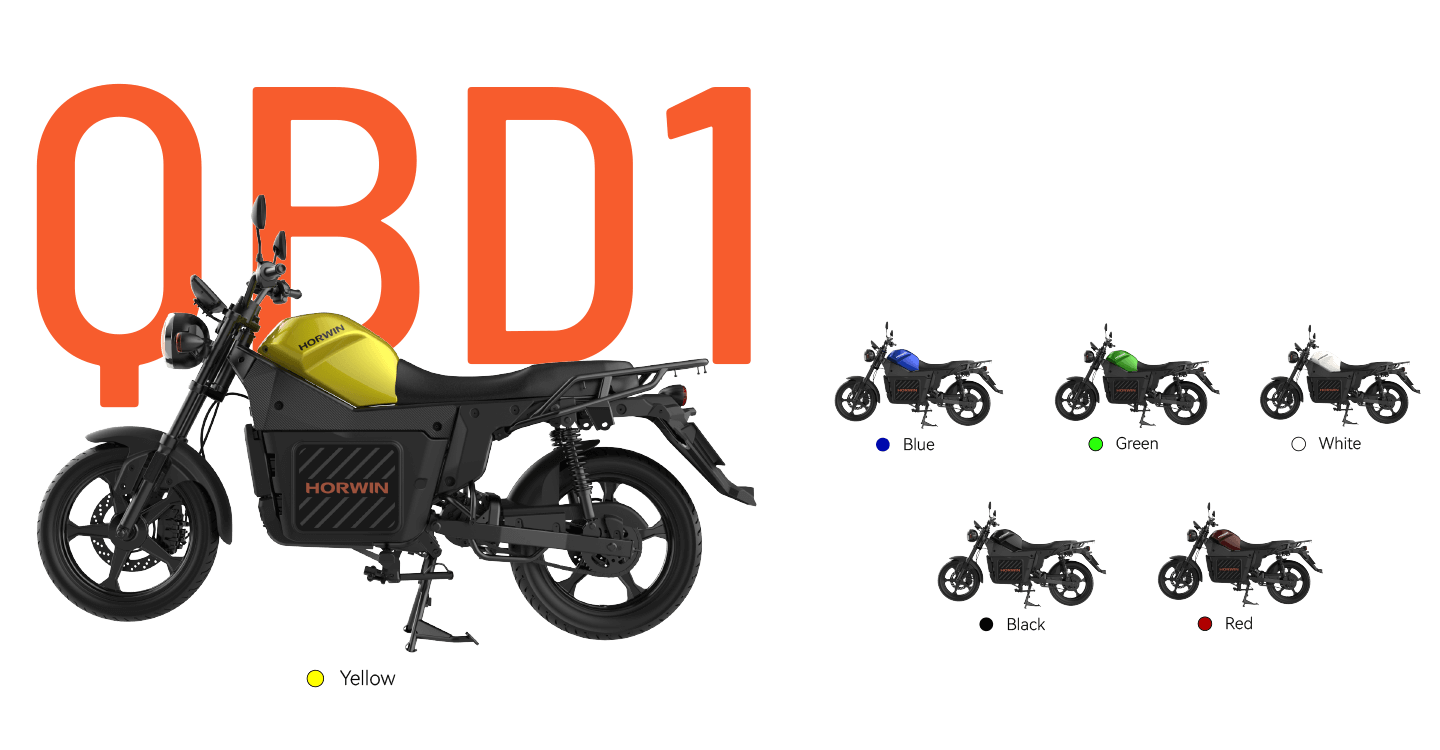

imgi_16_QBD1

90km/h

Top Speed

45*2 AH

Battery

7.0 KW

Peak Power

Customized Decals

Color Customization

Customization of vehicle brand logo

Front Rack

Left and right backpack racks

Rear tailstock

* Complete vehicle renovation design, intelligent system linkage deployment, customized complete solution (with minimum order quantity)

imgi_18_Battery

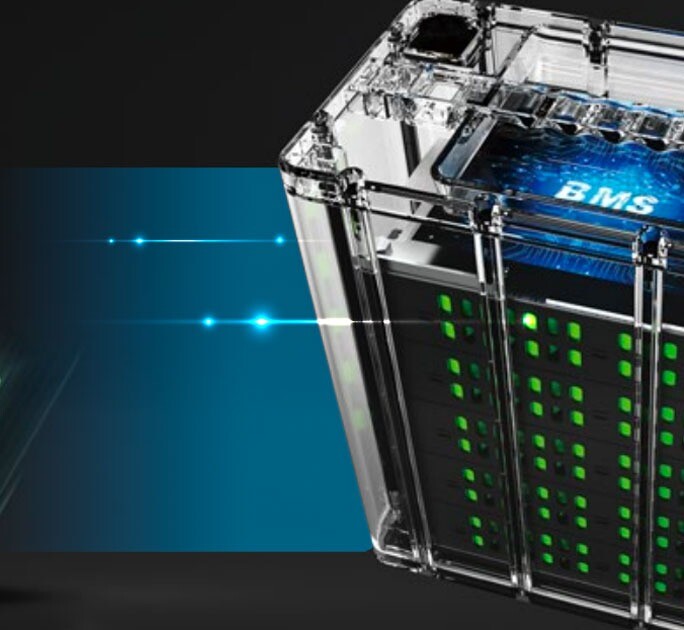

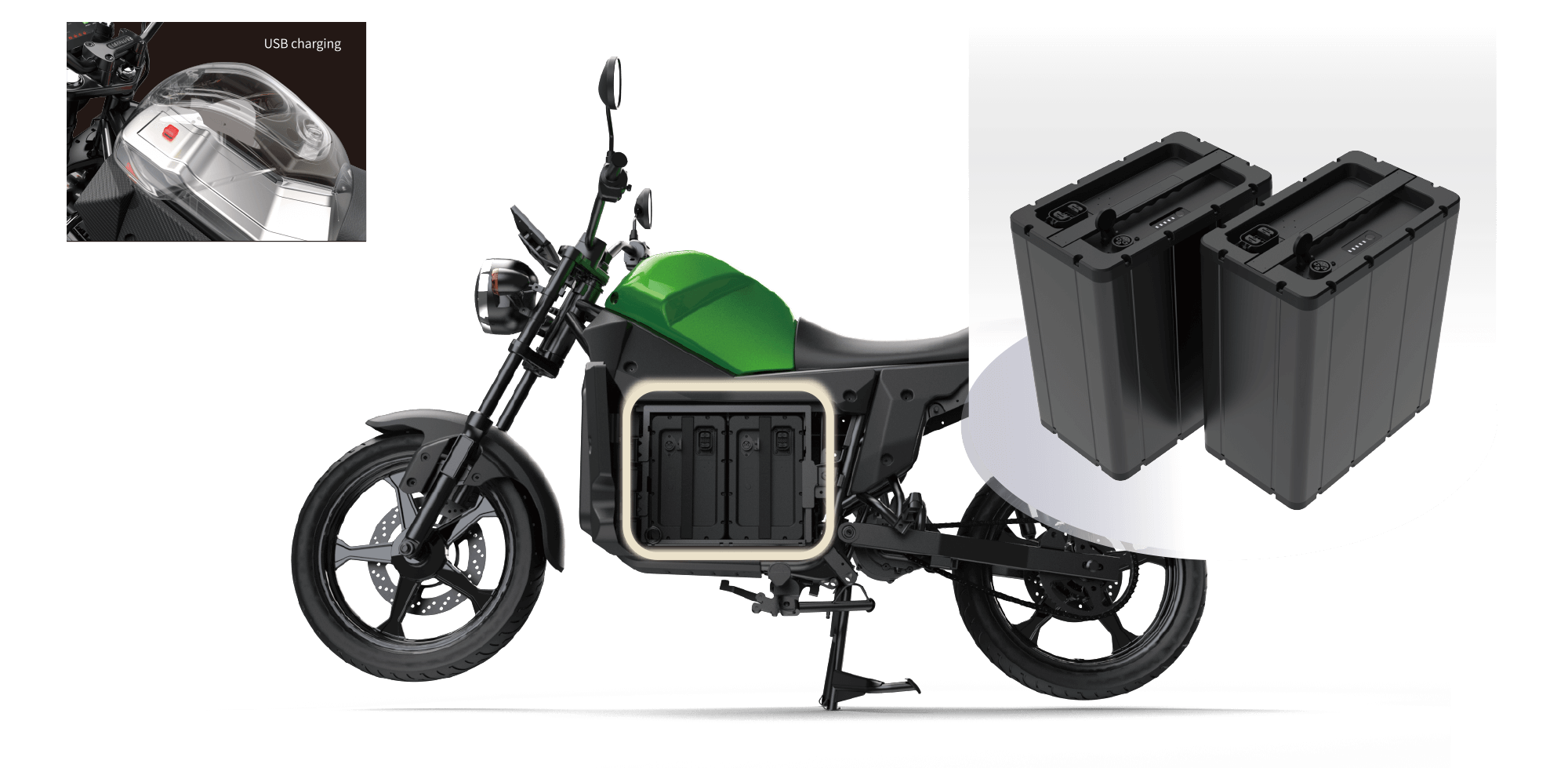

DUAL BATTERY COMPARTMENT DESIGN

We have designed a flexible battery solution for QBD1 with 72V 27AH*2 dual removable lithium iron phosphate batterieswith automotive grade long lasting lithium cells for long life.The range is up to 88km at speed of 75km/h.

imgi_19_Power

POWER

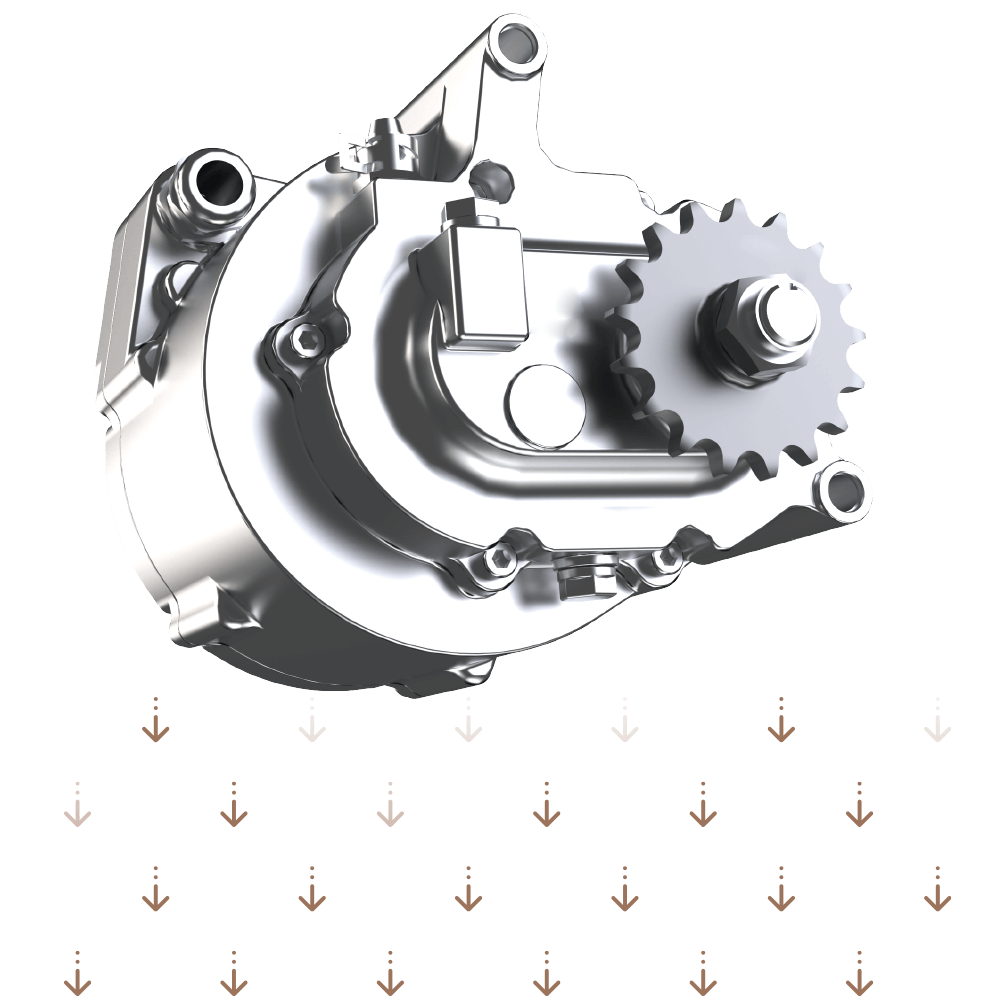

NEW HIGH-PERFORMANCEMOTORS

QBD1 with Middle drive motor with a Rated Power of 4500W. The topspeed can reach 90km/h, and the climbing performance is 28% (singlerider).lt has programmable energy recuperation (the motor runs in thisrecuperation mode).

CONVERSION EFFICIENCY

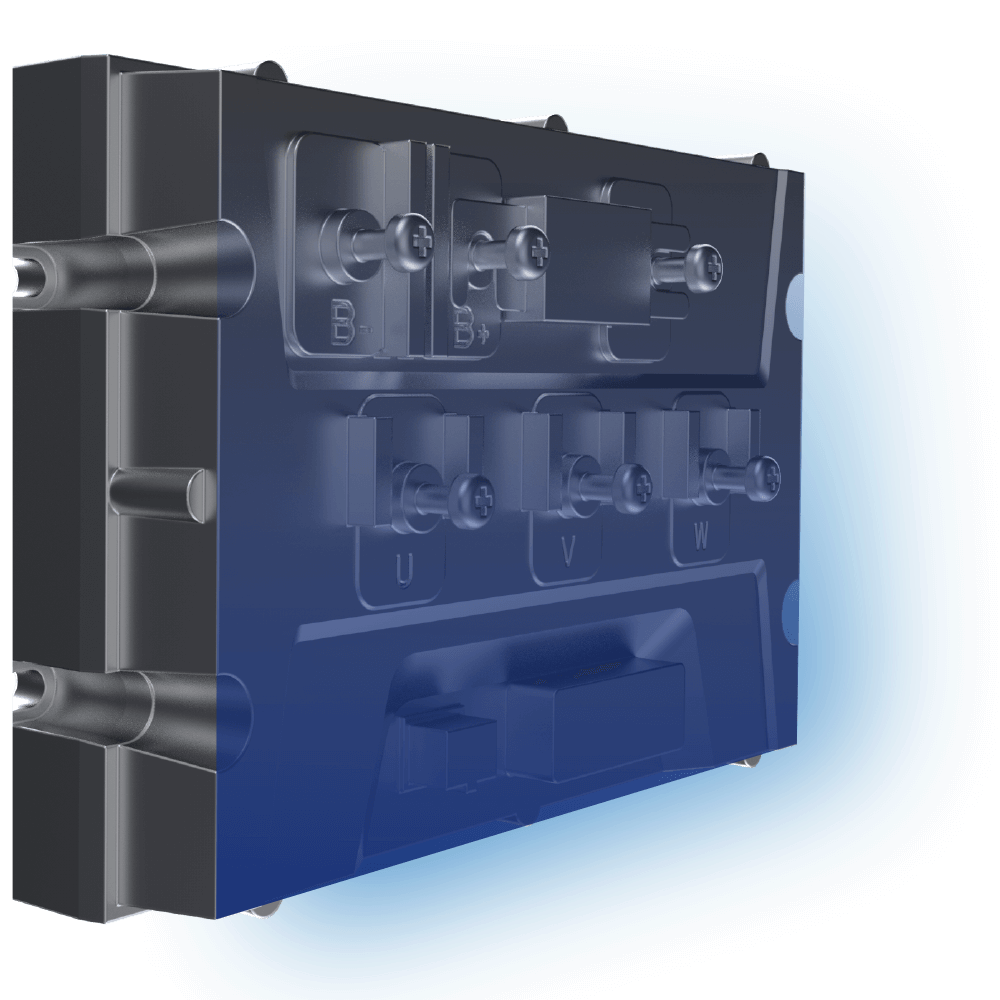

SMART CONTROLLINGUNIT (FOC)

QBD1's proprietary FOC controllers dynamically manage powerful motorsproviding smooth acceleration and an incredible riding experienceOptimized performance conversions up to 90%.

imgi_20_FOC

PRODUCT ADVANTAGES

  • Up to 150kg (2 riders and 2 batteries).
    Large Load Capacity
    Up to 150kg (2 riders and 2 batteries).
  • Minimum ground clearance of 165mm (QBD1).
    Strong Trafficability
    Minimum ground clearance of 165mm (QBD1).
  • Battery and motor controller are equipped with waterproof rating of IP67, while the vehicle equipped with waterproof rating of IP54.
    Waterproof
    Battery and motor controller are equipped with waterproof rating of IP67, while the vehicle equipped with waterproof rating of IP54.
  • High-strength carbon steel by over 2 million vibration tests.
    Excellent Durability
    High-strength carbon steel by over 2 million vibration tests.
  • Climbing up to 21 degrees.
    Strong Climbing Ability
    Climbing up to 21 degrees.
  • Optional accessories like bumper, rear rack, and oversized rear passenger foot board.
    Various Accessories
    Optional accessories like bumper, rear rack, and oversized rear passenger foot board.

FEATURES

  • No need to gear up frequently, just twist the handle and go, easy to operate.
    ELECTRIC DRIVE SYSTEM
    No need to gear up frequently, just twist the handle and go, easy to operate.

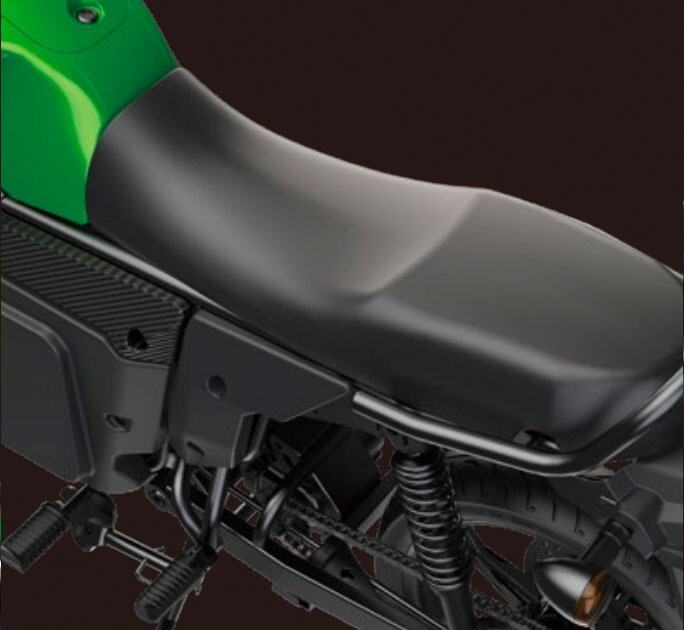

  • Length 712mm leather seat cushion with 6.9cm foam padding for an excellent ft and comfor.Waterproof PU leather, easy to cope with the long rainy season.
    EXTRA-WIDE SEAT CUSHION
    Length 712mm leather seat cushion with 6.9cm foam padding for an excellent ft and comfor.Waterproof PU leather, easy to cope with the long rainy season.
  • Theoreticallife of more than 50,000 hours, about 5 times that of halogen lamps, headlight brightness reaches 20,000cd.
    ALL-LED LIGHTING
    Theoreticallife of more than 50,000 hours, about 5 times that of halogen lamps, headlight brightness reaches 20,000cd.
  • The e-vehicle moves almost noiselesslyEven at top speed,thetyre noise is the only thing you hear
    ALMOST NOISELESS
    The e-vehicle moves almost noiselesslyEven at top speed,thetyre noise is the only thing you hear
  • No exhaust fumes means noemissions. Smelly clothes are alsoa thing of the past.
    NO SMELL
    No exhaust fumes means noemissions. Smelly clothes are alsoa thing of the past.
  • The engine is maintenance-free.Only the tyres and some partsof thebrake system need to be replacedfrom time to time.
    LOW MAINTENANCE COSTS
    The engine is maintenance-free.Only the tyres and some partsof thebrake system need to be replacedfrom time to time.
  • No exhaust fumes means noemissions. Smelly clothes are alsoa thing of the past.
    LOW RUNNING COSTS
    No exhaust fumes means noemissions. Smelly clothes are alsoa thing of the past.
  • Normally, insurance costs are muchlower than forpetrol-driven vehicles(depending on the country)
    LOW INSURANCE COSTS
    Normally, insurance costs are muchlower than forpetrol-driven vehicles(depending on the country)
  • The e-vehicle drive is probably themost sustainable andenvironmen-tally friendly way to get from A to B.
    ENVIRONMENTALLY FRIENDLY
    The e-vehicle drive is probably themost sustainable andenvironmen-tally friendly way to get from A to B.

SCENARIO

  • Delivery Scooter
  • Motorcycle Taxi
  • Swapping Cabinet
  • Leasing Vehicle

Product Specification

SPECIFICATIONS
Color Green 、Blue 、Yellow 、Red 、White 、Black
Size L:2200mm          W:765mm    H:1105mm       Seat  Hight:765mm
Motor Type Mid-motor
Controller FOC
Battery NCM Battery 72V 45AH*2
MEASUREMENTS
Front hub MT  2.5x16  Wheelbase 1450mm
Rear  hub MT  2.75x16 Minimum Ground Clearance 160 mm
Front tire size 100/80-16 Max.permissible Total Weight 297 KG
Rear tire size 120/80-16 Rim Aluminium Alloy
ELECTRONIC PARTS SPECIFICATION
Rated Power 4.5kW Braking System CBS
Max Power 7.0kW Charging Time(10A) About 5.5h*2(2 batteries)
Top Speed 90 km/h Maximum Torque 320N·m
Max.range(EEC test) 125km（at speed of 60km/h）(4.5AH*2)
FEATURES
Removable Battery Yes USB 5V/1A
Lights LED(front,rear,flashing) Optional Front Bumper/Rear Rack
Screen TFT /Foot  Rest
