90km/h

Top Speed

140 km

Range

*2 Batteries

6.3 KW

Peak Power

40 KG

Maximum Load

Customized Decals

Color Customization

Customization of vehicle brand logo

Front Rack

Left and right backpack racks

Rear tailstock

* Complete vehicle renovation design, intelligent system linkage deployment, customized complete solution (with minimum order quantity)

imgi_17_Ek21

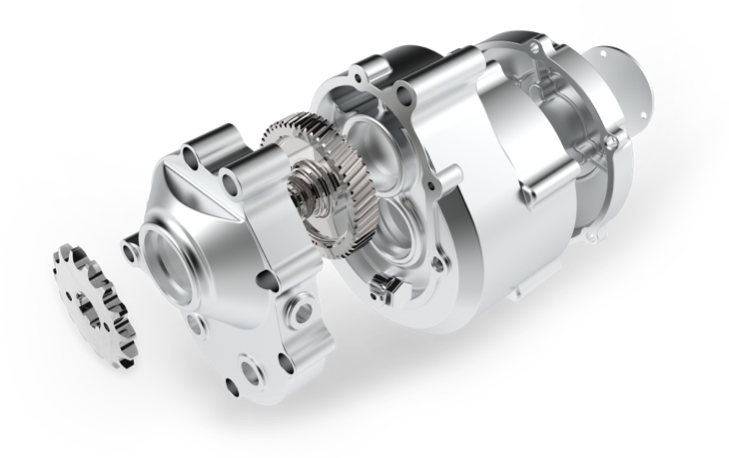

POWERFUL CENTRE MOTOR

The top speed of 90 km/h guarantees fast processing of your delivery orders.

imgi_18_battery7236

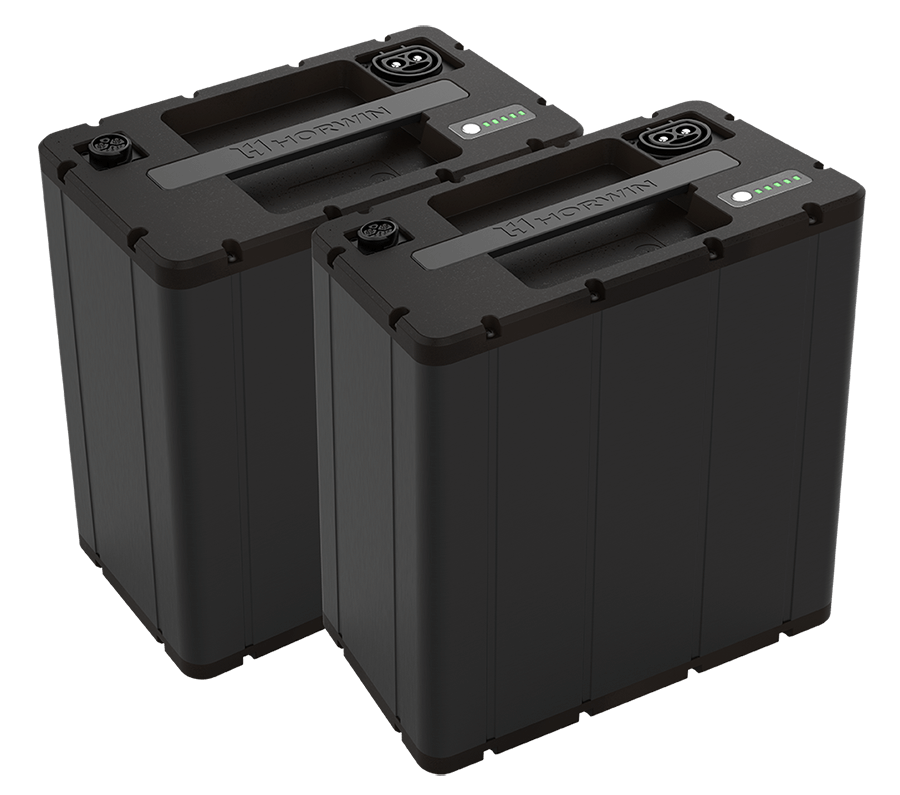

COMFORTABLE HANDLING

The range is up to 140 km with an optional second battery. The keyless start of the vehicle is another highlight and simplifies the handling of the SK3 DS.

Maximum Load

The luggage carrier is reinforced, rustproof and can carry a load of up to 40 kg. This offers the possibility to mount rear boxes with a maximum capacity of 200 litres.

  • The large and soft seat ensures fatigue-free and comfortable riding on longer journeys.

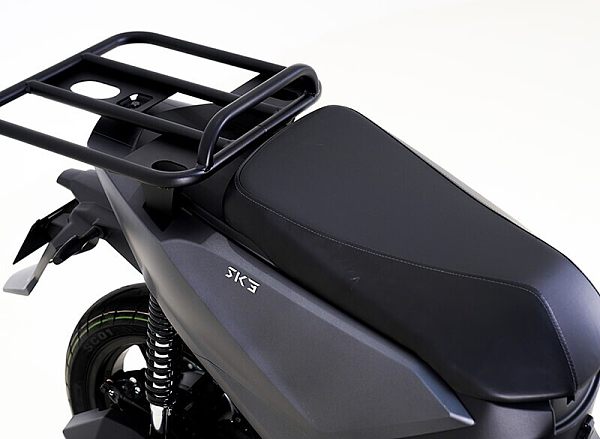

    Big seat cushion
    The large and soft seat ensures fatigue-free and comfortable riding on longer journeys.
  • Ergonomically adjusted dimensions guarantee perfect seating comfort. Hydraulic shock absorbers provide an excellent riding experience.

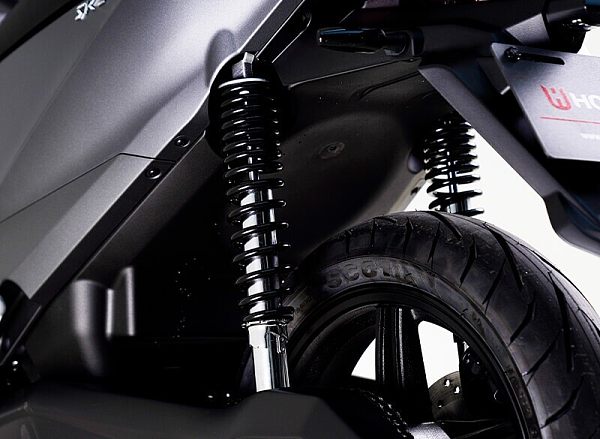

    Optimal dimensions
    Ergonomically adjusted dimensions guarantee perfect seating comfort. Hydraulic shock absorbers provide an excellent riding experience.
  • The keyless start, demonstrates your distinguished identity as the owner of the vehicle.

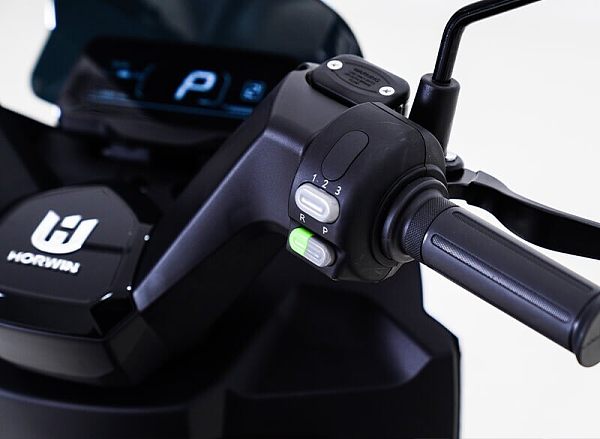

    Keyless start
    The keyless start, demonstrates your distinguished identity as the owner of the vehicle.

Product Specification

PERFORMANCE SK1 DS SK3 DS
Top Speed 45km/h 90km/h
Range 90km（with 40 kph） 140km（with 40 kph）
DIMENSION
L*W*H 1920mm*720mm *1150mm 1920mm*720mm *1150mm
Saddle Height 780mm 780mm
Ground Clearance 132mm 132mm
Wheelbase 1290mm 1290mm
Weight(G.W) 85kg（without battery） 94kg（without battery）
POWERTRAIN
Motor Hub Motor Mid Motor
Controller FOC FOC
Max Power 3.0kW 4.0kW
Continue Rated Power 2.0kW 6.3kW
Battery 72V，36Ah（optional with second battery） 72V，36Ah*2
Charging Time（8A） ≈4.5h ≈5.5h*2
Ride Mode 1/2/3/R 1/2/3/R
CHASSIS
Brake System Disc Brake CBS+disc Brakes
Wheels Tire 100/80 R14 Tire 100/80 R14
110/70 R13 110/70 R13
Rim Aluminium Alloy Rim Aluminium Alloy
SMART&FEATURES
Safety System GPS+Transaction Alarm GPS+Transaction Alarm
Screen LED TFT
All-around LED Lights ● ●
Y-cable ○ ●
