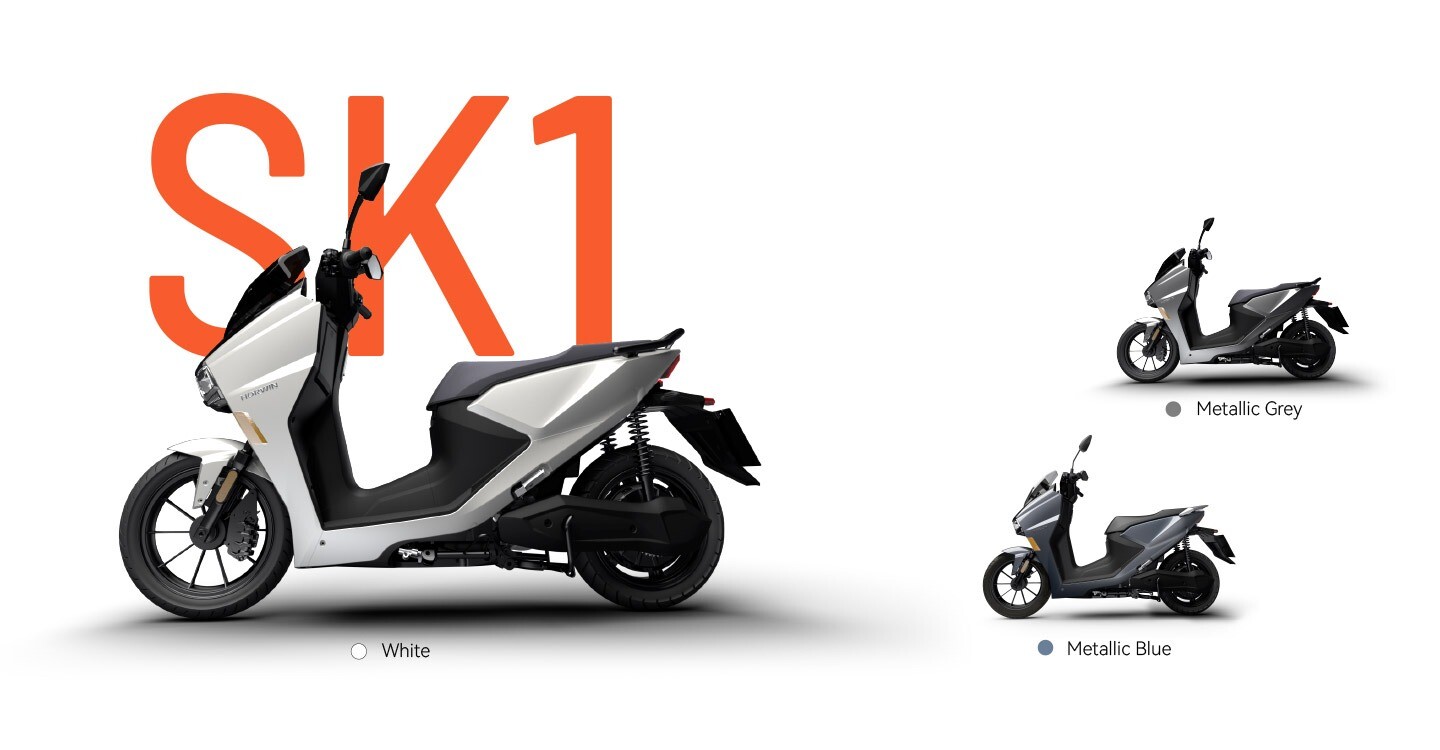

imgi_15_SK1

45km/h

Top Speed

90 km

Range

*2 Batteries

3.0 KW

Peak Power

Customized Decals

Color Customization

Customization of vehicle brand logo

Front Rack

Left and right backpack racks

Rear tailstock

* Complete vehicle renovation design, intelligent system linkage deployment, customized complete solution (with minimum order quantity)

imgi_16_SK1

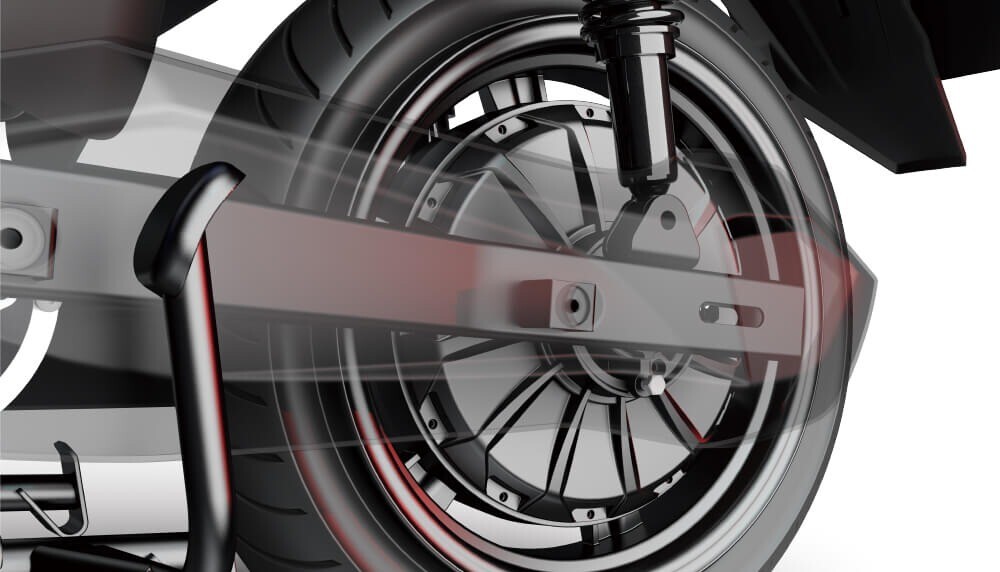

HIGH POWER HUB MOTOR, VISIBLE STRONG DRIVING FORCE

The Hub Motor creates an output of 3.0 kw at a speed of 45km/h.

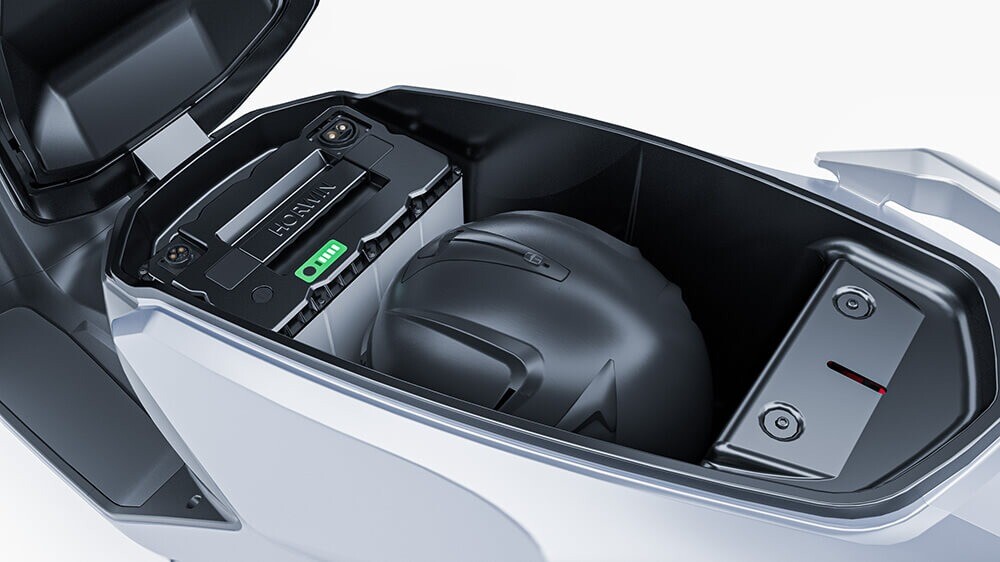

SPACE FOR TWO BATTERIES

The storage space under the seat is extra large with a volume of 35 litres. There is space for a helmet or an optional second battery, which increases a lot the range.

imgi_17_battery7236

EVERY BRAKING MAKESYOU REST ASSURED

The front and rear dual hydraulic shock absorption allow you to drive as if walking on a flat ground, and the control is handy.

BRAKES

High-end braking system

The 220 mm front and rear disc brakes ensure a shorter braking distance.

imgi_20_SK104

EVERY DEPARTURE WILL BE A PLEASANT JOURNEY

Large-capacity seat bucket space allows you to easily put down daily necessities such as helmets and backpacks, making you worry-free riding.

Keyless start

The keyless start, demonstrates your distinguished identity as the owner of the vehicle.

imgi_21_SK104
  • imgi_22_SK101
  • imgi_23_SK102
  • imgi_24_SK103

Humanized Design Details

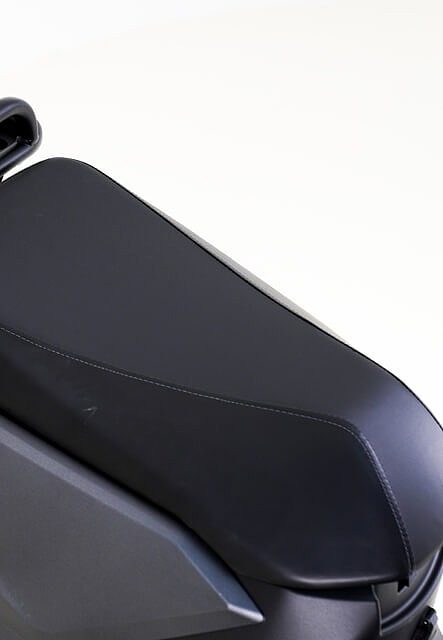

· Comfortable Cushion

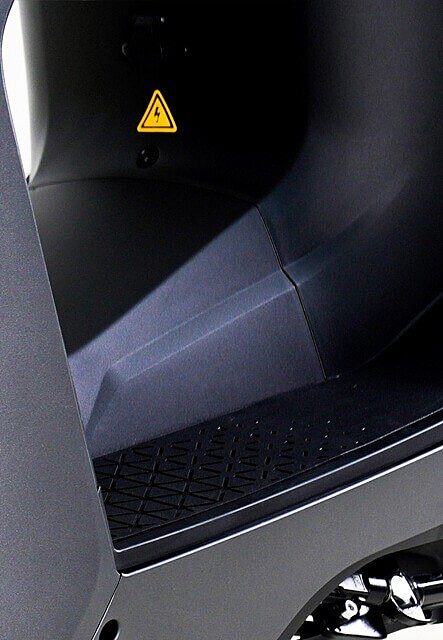

· Retractable Pedals

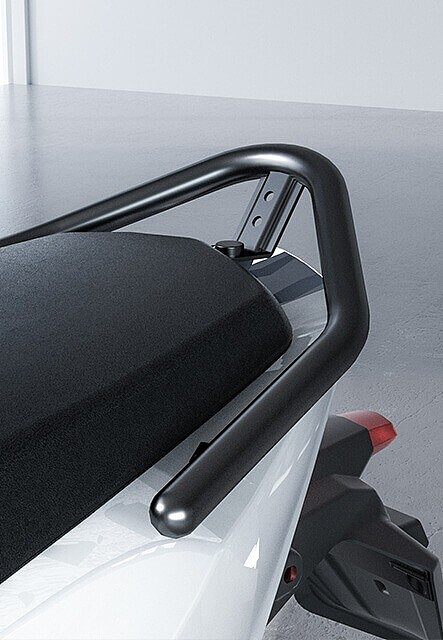

· Aluminum Alloy Rear Armrest

Product Specification

PERFORMANCE
Top Speed 45km/h
Range 90km(with 45 kph)
DIMENSION
L*W*H 1993mm*742mm*1136mm
Saddle Height 790mm
Ground Clearance 155mm
Wheelbase 1360mm
Weight(G.W) ≤85kg(without battery)
Max.permissible Total Weight 277KG
POWERTRAIN
Motor Hub Motor
Controller FOC
Max Power 3.0kW
Continue Rated Power 2.0kW
Battery 72V,36Ah
Charging Time(8A) ≈4.5h
Ride Mode 1/2/3/R
CHASSIS
Brake System Disc Brake
Wheels Tire 100/80-14
120/70-14
Rim Aluminium Alloy
SMART&FEATURES
Safety System GPS+Transaction Alarm

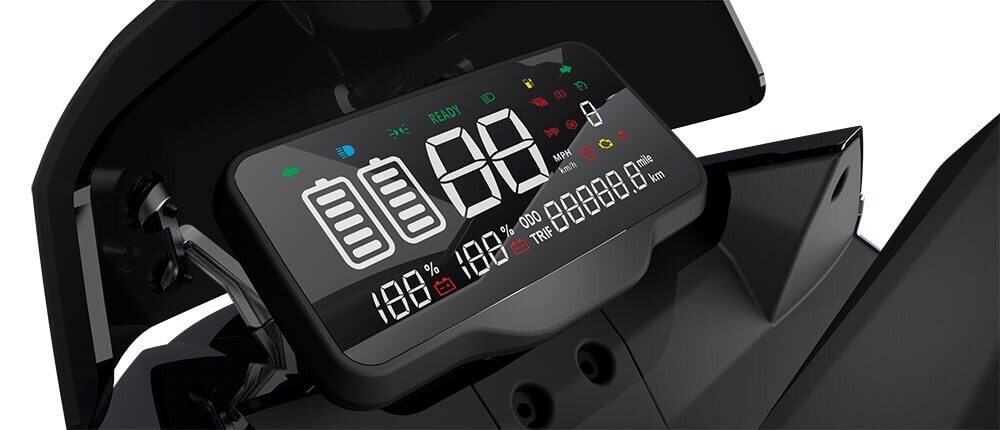

Screen LED
USB 5V/1A
Touch-start Display
All-around LED Lights
